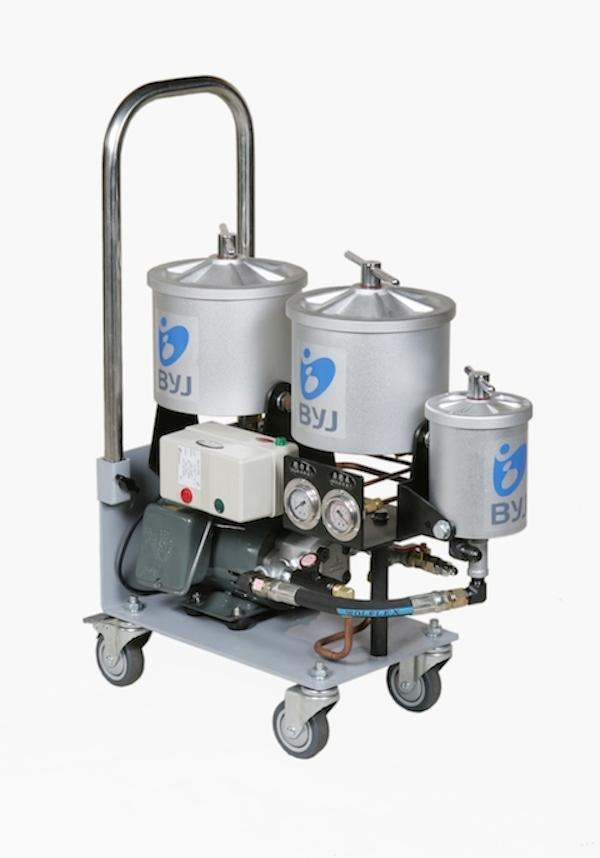

Specifications:

1. Flow at 50Hz: 1.3-6.6 liter/mints ;Flow at 60Hz: 1.6-8.0 liter/mints
2. Suitable capacity of oil reservoir: 300-500 liter
3. Normal pressure setting for mercury: 1-3 kg/cm²
4. Port diameter ( in_out ): 3/8_1/2
5. Weight: 45 kgs
6. Dimension: 63x30x79 cm
7. Motor: 1/2 HP
8. Voltage: On request
9. Single phase
10. 50HZ/60HZ
11. Apply filter core: G-100 x 2 pcs
12. The smaller tank contains a reusable pre-filtering mesh
13. Length of pipes: 3 meter
14. Length of power cord: 5 meter, 2-conducto
15. Each machine contains one set of filter core

Features:

1. Occupying small space.
2. Operating with single-phase power and built for plug-and-operate use.
3. Equipped with pre-filtering mesh to protect the pump and extend the service life of precision oil filter.
4. Equipped with pump for operating independently, enable to filtration oil continuously, clearness performance reach to NAS grade 6~9, which is even better than new oil, possibly no oil change for 10 years.
5. By using purified oil, the mechanical failure can be substantially reduced, mechanical service life to be extended, also quality and productivity to be improved.
6. Equipped with warning indicator for filter replacement and overpressure, and automatic shutdown mechanism.
7. Enable to be used as oil pumping unit.
8. Simple installation, no machine stoppage necessary, and easy to maintain.
9. The filtration performance would be even better with the machine running.

Order Information:

• Minimum Order: 1
• Branded Product
